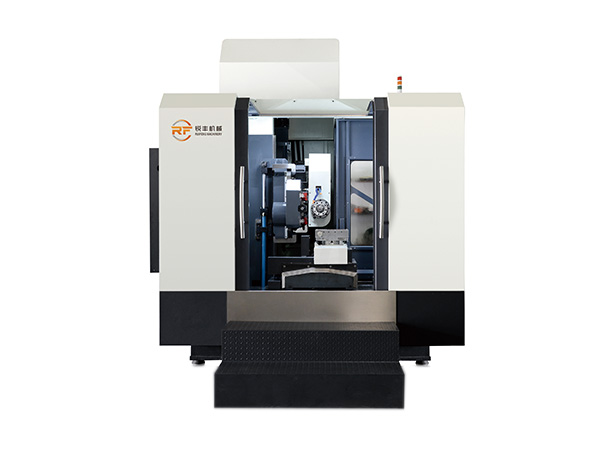

五六轴深孔钻(型号:RFD6ZX0505-500 RFD6ZX1512-1300 RFD6ZX2515-1500 RFD6ZX3015-1500 )

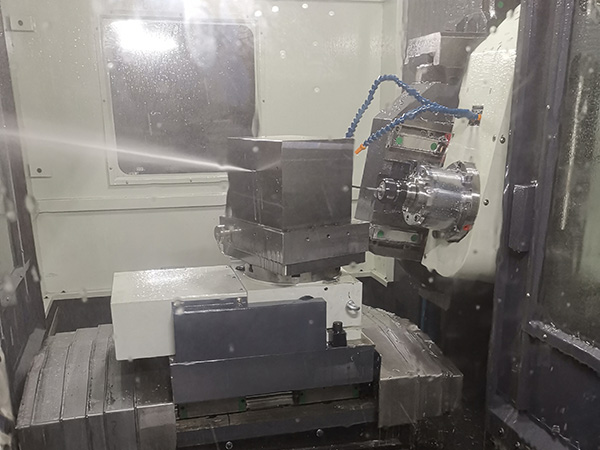

六轴钻铣深孔钻简述
六轴钻铣深孔钻,配有4条直线和2条数旋转控轴,具有铣削、钻孔功能专为复杂模具加工而设计。
二、 应用领域
汽车模具仪表盘、保险杆、门板、热压成型,大型箱体零件等复杂零件。
三、主要特点

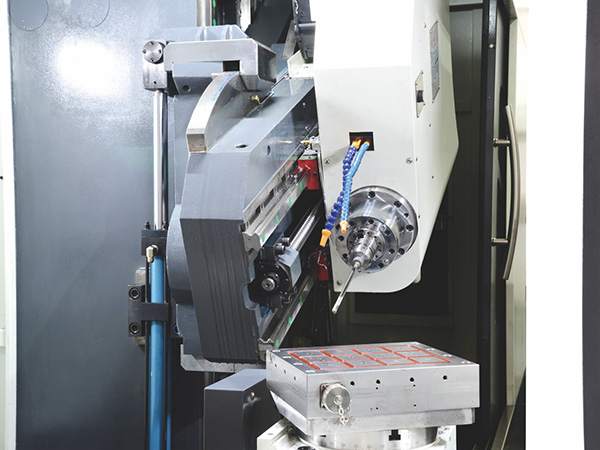

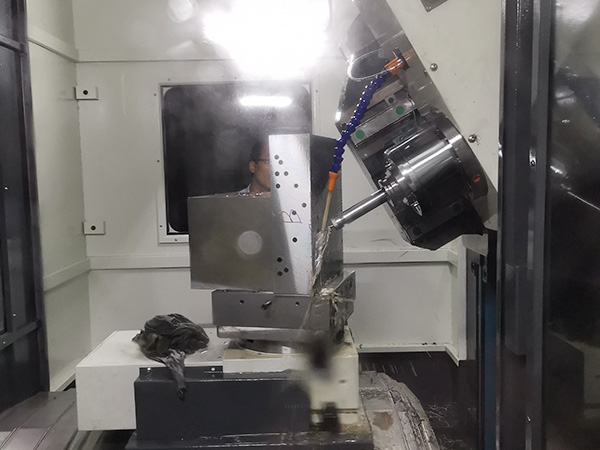

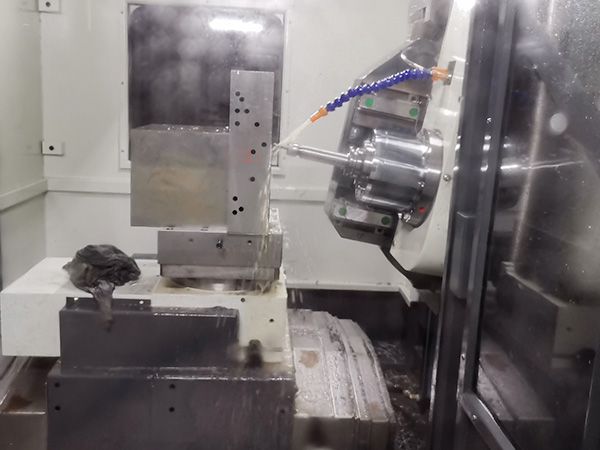

1.主轴(A轴)向上20度,向下30度高精度旋转。实现复合角度加工。

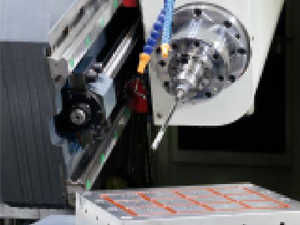

2.主轴具有强力铣削功能。
3.可配喷吸钻,实现高效率、高精度、高光洁度的大孔加工。

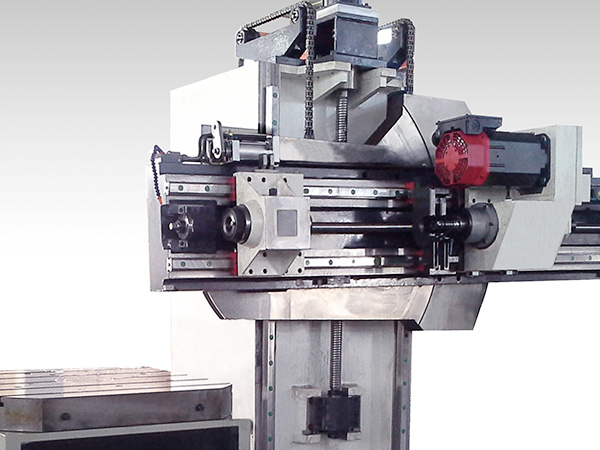

四、 产品详情

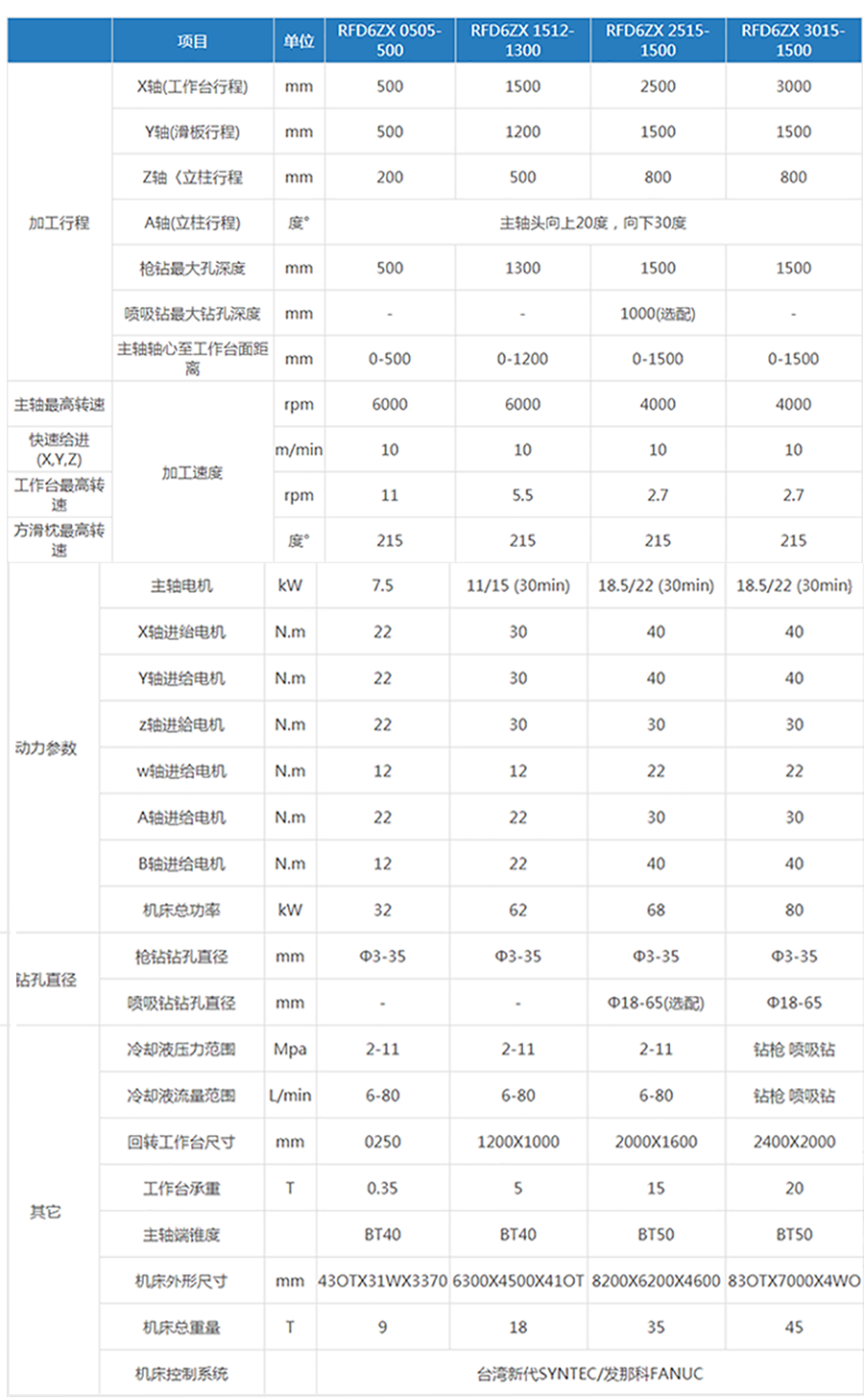

五、 技术参数
以下是OFFICE 版本的文档(请下载使用)
RFD6ZX 系列六轴钻铣深孔钻 RFD6ZX SERIES 6-AXIS DRILLING | ||||||
技术参数 TECHNICAL PARAMETERS | ||||||
RFD6ZX | RFD6ZX | RFD6ZX | RFD6ZX | |||
项⽬ | 单位 | 0505-500 | 1312-1300 | 2515-1500 | 3015-1500 | |
加⼯⾏程 | X轴(⼯作台⾏程)X-axis(travel of work bench) | mm | 500 | 1300 | 2500 | 3000 |
Y轴(滑板⾏程)Y-axis (travel of sliding plate) | mm | 500 | 1200 | 1500 | 1500 | |
Z轴(⽴柱⾏程)Z-axis (travel of vertical pillar) | mm | 200 | 500 | 800 | 800 | |
A轴(⽴柱⾏程) | 度° | 主轴头向上20,向下30度 The main shaft head up 20°and down 30° | ||||
枪钻最⼤孔深度Maximum drill depth of gun drill | mm | 500 | 1300 | 1500 | 1500 | |
喷吸钻最⼤钻孔深度Maximum drill depth of spray and absorb drill | mm | 1000(选配)selective | ||||
主轴轴⼼⾄⼯作台⾯距离Distance from the center of main shaft to the surface of work bench | mm | 0-500 | 0-1200 | 0-1500 | 0-1500 | |
加⼯速度processing | 主轴最⾼转速Maximum rotating of main shaft | rpm | 6000 | 6000 | 4000 | 4000 |
快速给进(X.Y.Z)Fastfeeding | m/min | 10 | 10 | 10 | 10 | |
⼯作台最⾼转速Maximum rotating speed work banch | rpm | 11 | 5.5 | 2.7 | 2.7 | |
⽅滑枕最⾼转速Maximum rotating speed of square guide way | 度° | 215 | 215 | 215 | 215 | |
动⼒参数Dynami cparameter | 主轴电机Motor of main shaft | kW | 7.5 | 15/18.5(30min) | 18.5/22(30min) | 18.5/22(30min) |
X轴进给电机X-axis feeding motor | N.m | 22 | 30 | 40 | 40 | |
Y轴进给电机Y-axis feeding motor | N.m | 22 | 30 | 40 | 40 | |
Z轴进给电机Z-axis feeding motor | N.m | 22 | 30 | 30 | 30 | |
W轴进给电机 W-axis feeding motor | N.m | 12 | 12 | 22 | 22 | |
A轴进给电机A-axis feeding motor | N.m | 22 | 22 | 30 | 30 | |
B轴进给电机 B-axis feeding motor | N.m | 12 | 22 | 40 | 40 | |
机床总功率Total power of machine tool | kW | 32 | 62 | 68 | 80 | |
钻孔直径Diameter of drill hole | 枪钻钻孔直径Drilling diameter of gun drill | mm | Φ3-35 | Φ3-35 | Φ3-35 | Φ3-35 |
喷吸钻钻孔直径Drilling diameter of spray and absorb drill | mm | - | - | Φ18-65(选配)selective | Φ18-65 | |
其它Other | 冷却液压⼒范围Pressure scope of cooling liquid | Mpa | 2-11 | 2-11 | 2-11 | 钻枪 Gun drill 2-11喷吸钻 Spray and absorb drill 1.0-1.7 |
冷却液流量范围Flowrate scope of cooling | L/min | 6-80 | 6-80 | 6-80 | 钻枪Gundrill6-80 | |
回转⼯作台尺⼨ Sizeof rotating table | mm | Φ250 | 1200X1000 | 2000X1600 | 2400X2000 | |
⼯作台承重Load-bearing of work banch | T | 0.35 | 5 | 15 | 20 | |
主轴端锥度 Taper of main shaft end | BT40 | BT40 | BT50 | BT50 | ||
机床外形尺⼨External size of machine tool | mm | 4300X3180X3370 | 6300X4500X4100 | 8200X6200X4600 | 8300X7000X4600 | |
机床总重量Total_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x0001_weight_x0001_ofmachinetool | T | 9 | 18 | 35 | 45 | |
机床控制系统Machinetoolcontrolsystem | 台湾新代SYNTEC/发那科FANUC | |||||
本公司机床不断进⾏研发改良,如有更改规格恕不另⾏通知。本资料图⽚仅供参考,以实际产品样为准。 | ||||||
RFD6ZX系列六轴钻铣深孔钻简述 | ||||||
RFD6ZX六轴钻铣深孔钻,配有4条直线和2条数控轴,具有铣削、钻孔功能专为复杂模具加⼯而设计 Multi shaft mold conveying waterCNC milling machine is integrating milling and deep-hole processing | ||||||
产品特点: | ||||||
RFD6ZX六轴钻铣深孔钻,配有4条直线和2条数控轴,具有铣削、钻孔功能专为复杂模具加⼯ | ||||||
Multi shaft mold conveying water CNC milling machine is integrating milling and deep-hole processing and makes it possible to achieve multiple surfaces and working proce dures at one-time clamping. | ||||||
APPLICATIONFIELD/_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x0001_应⽤领域:汽⻋模具仪表盘、保险杆、⻔板、热压成型,⼤型箱体零件等复杂零件。 | ||||||
FEATURES/主要特点: | ||||||
1.主轴(A轴)向上20度,向下30度⾼精度旋转。实现复合⻆度加⼯。Highprecisionrotationofmainshaft(shaftA)up20degreesanddown30degrees.Compoundanglemachiningisrealized. | ||||||
2._x005f_x005f_x005f_x005f_x005f_x005f_x0001_主轴具有强⼒铣削功能。The main shaft features powerful milling function (cutter disc may be installed). | ||||||
3.可配喷吸钻,实现⾼效率、⾼精度、⾼光洁度的⼤孔加⼯。 | ||||||
Equipped with spary and absorb drill to achieve high efficiency and high precision high fineness large-hole processing. | ||||||
